Optical colored glasses

Description

Optical colored glasses are intended for manufacturing color filters with selective absorption of light radiation in a wide range of wavelengths. Each brand of glass has a designation that corresponds to the working part of the spectral range.

Properties of glasses meet the requirements of GOST 9411-91 “Optical colored glass”

Codes of colored glasses

Codes of glass Application
SS15 Transparent in the spectral range of 360-490 nm.
In combination with glasses codes ZhS11 and ZhS12 separates the line 436 nm in the mercury spectrum.
ZS1 Transparent in the spectral range of 480-570 nm.
Has a three-color projection.
ZC8 Adjustment of the spectral sensitivity curve of the selenium photocell to the eye sensitivity curve (in combination with the glass code ZhZS18).
UFS1 Transparent in the spectral range of 240–420 nm.
UFS8 Transparent in the spectral range of 310–390 nm.
Luminescence analysis.
PS13 Separation of the line 405 nm in the mercury spectrum.
In combination with glasses codes BS8 or ZhS10.
ZhZS5 For colored lighting.

Optical colored blue-green glasses

Code of glass PURPOSE APPLICATION
CZS 21 Absorption in the spectral range of 620–1500 nm.
In combination with glasses codes OS11, OS12, OS13, OS14, separates the spectral range of 520–600 nm.		 For receivers of radiation of natural objects.
CZS 22 Absorption in the spectral range of 580–700 nm.
In combination with glasses codes ZhS16, ZhS17, ZhS18, OS11, separates the spectral range of 480–540 nm.		 In radiation receivers for photometry of natural objects.
CZS 23 Absorption in the spectral range of 680–1200 nm.
In combination with glasses codes OS14, KS10, KS11, KS13, separates the spectral range of 580–660 nm.		 For absorption of scattered radiation in gas lasers.
CZS 26 In combination with other glasses, separates the spectral range of 680–800 nm.
Heat-shielding neutral filter.		 Protecting photodetectors from overheating by powerful radiation in telescopes and projectors.

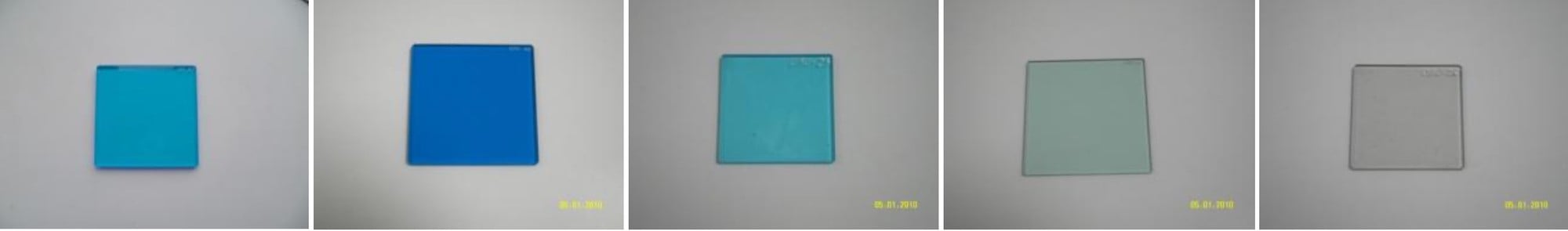

Codes of glass CZS 21, CZS 22, CZS 23, CZS 24, CZS 26
