Description
The technical equipment of the processing area allows one to process glass and produce:

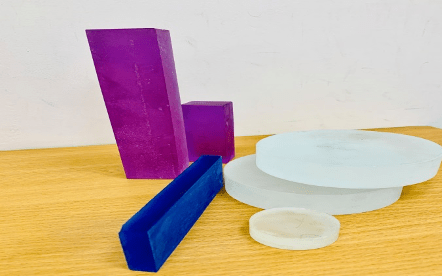

BLANKS
Flat blanks of rectangular configuration
|
Characteristic |
Value |
| Maximum size | 770 × 770 × 70 mm |
Disks
|
Characteristic |
Value |
| Diameter | up to 400 mm |
| Thickness | up to 70 mm |
Prismatic blanks

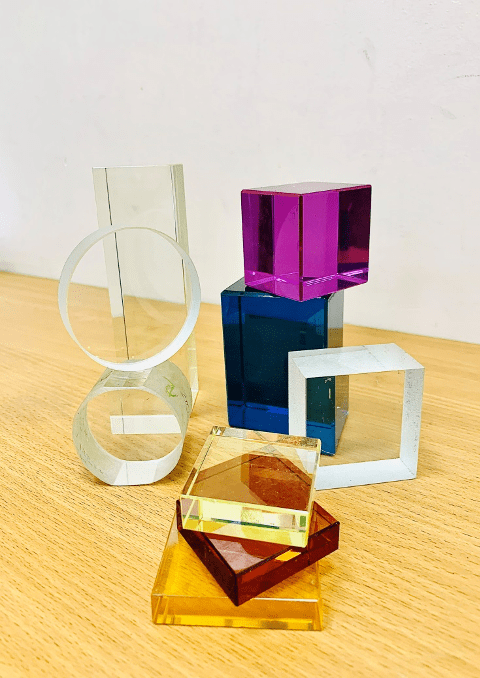

Optical elements
Plane-parallel plates without requirements for flatness of operating surfaces
|
Characteristic |
Value |
| Maximum size | 480 × 480 mm |
| Ratio h/d | 1/200 |
| Thickness difference | 0.02–0.04 mm |
Plane-parallel plates and wedges
|
Characteristic |
Value |
| N (overall error) | 0.5 Newton rings |
| ∆N (local error) | 0.2 Newton rings |
| P (cleanliness class of polished optical surface) | PIII (category 3) |
Glass Products
