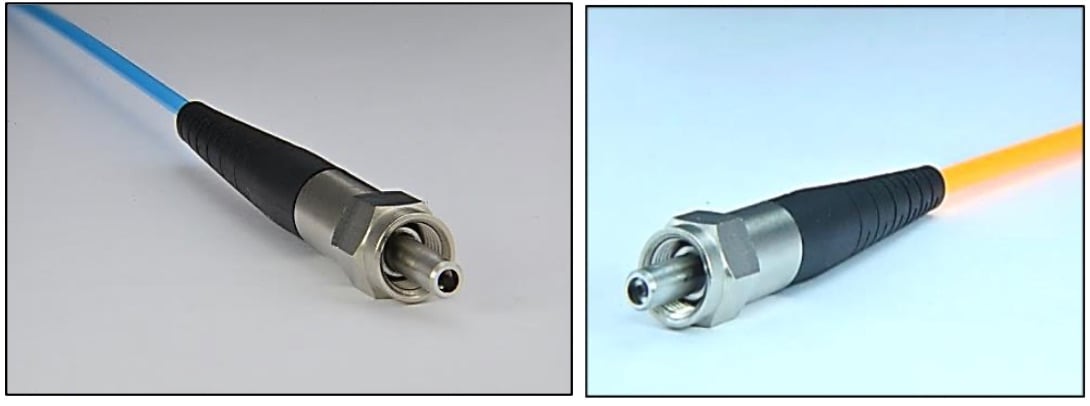

Fiber optic cables, patch-cords and pigtails

Description

Fiber optic cables, patch-cords and pigtails with a single step-index or graded-index multi-mode optical fiber in acrylate or metal (tin, lead) coating.

Field of application:

  • Systems for delivery of low- and mid-power laser radiation (based on step-index multi-mode optical fibers)
  • Systems for delivery of (ultra)short pulses (based on graded-index multi-mode optical fibers)

Characteristics

Characteristic Value

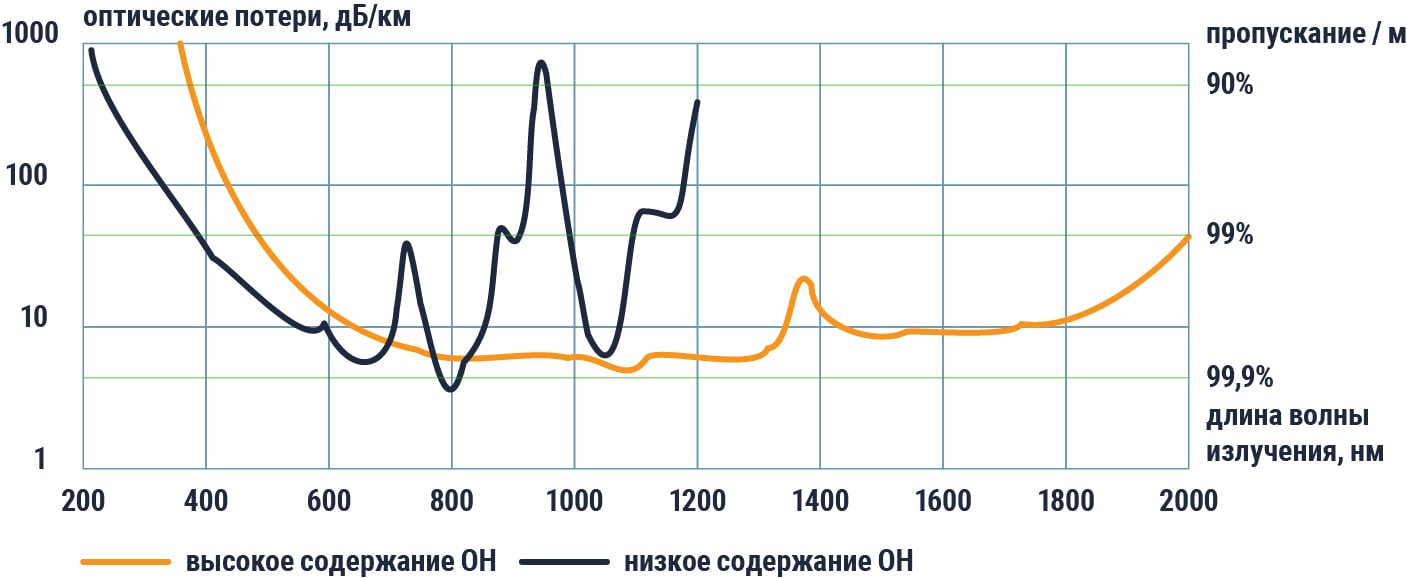

Operating Wavelength Range, nm 250-1200 (High-OH)
400-2000 (Low-OH)
Numerical Aperture 0.22 (Step-index multi-mode optical fibers with a fluorosilicate cladding)
0.36 (Step-index multi-mode optical fibers with a silicone cladding)
0.45 (Step-index multi-mode optical fibers with a fluoroacrylate cladding)
0.12 (Graded-index multi-mode optical fibers with low temporal dispersion)
Optical Fiber Core Diameter, µm 50–1000
Optical Fiber Coating Thickness, µm* > 50 (Acrylate), 40-80 (Tin, Lead)
Protective Jacketing Diameter, mm** ≤3
Connector Type SMA905, FC, LC, SC, ST
Protective Jacketing Material PEEK, PVC, PTFE, Silicone
Length, m*** ≤ 60

*Other coating thicknesses on demand
**Other diameters on demand

***Other lengths on demand
